Accessories for MEASSuRE
60-Channel Electrophysiology Interface Board (EIB)
60-channel EIB connecting the electrodes with the controller
Shield MEA electrophysiology recordings from external noise
Shield Omnetics connectors & Intan headstages from potential media splashing
Secure latching mechanism
Product Number (PN): 11-22000

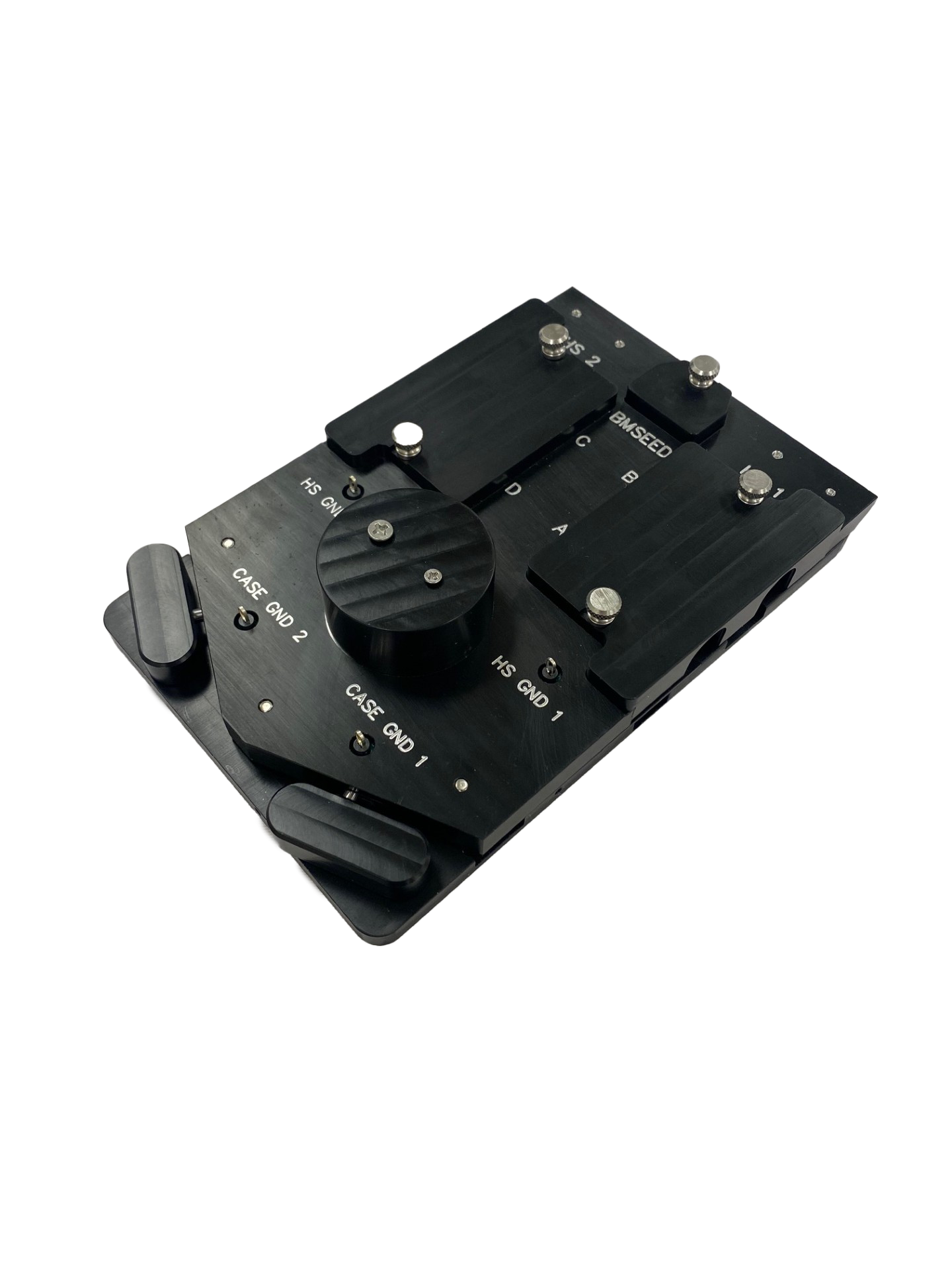

120-Channel Electrophysiology Interface Board (EIB)
120-channel EIB connecting the electrodes with the controller
Shield MEA electrophysiology recordings from external noise
Shield Omnetics connectors & Intan headstages from potential media splashing
Secure latching mechanism
Product Number (PN): 11-23000
60-Channel Expansion Kit for Electrophysiology Module
Increase the number of simultaneously usable channels from 60 to 120
Perform two 60-channel electrophysiology recordings at the same time
Kit contains: two 30-channel headstages, two SPI cables, one interface board
Product Number (PN): 11-30000
Temperature Controller
Control the temperature of your cell culture outside of the incubator between room temperature and 45°C
No physical contact to medium
Low cost
Compatible with electrophysiology interface board
product number (PN): 11-70000
Temperature controller
Readily Change the Strain Profile
Different strain profiles can be produced with any model of MEASSuRE
Changing the strain profile for cell stretching only requires exchanging the Teflon indenter (see image on right)
A circular indenter produces radial strain: ey = ex
A bar-shaped indenter produces close to linear strain: ey = 4ex
Custom indenter shapes for specific strain profiles are available
Indenters for Radial (left) and Uniaxial (right) Strain
Stretchable MEA Caps
Maintain sterility and prevent splashing
Perform longitudinal measurements
Protect cells during stretch
product number (PN): 11-80000
Cap to protect cells on the stretchable MEA from contamination
Stretchable MEA with protective cap
Faraday Cage
Eliminate electromagnetic interfaces from the environment (e.g. lamps, computers, electronic equipment) by shielding them with a Faraday cage
Convenient and low cost
Several sizes available
Suitable for any data acquisition system
product number (PN): 11-61000 (small). 11-62000 (large)

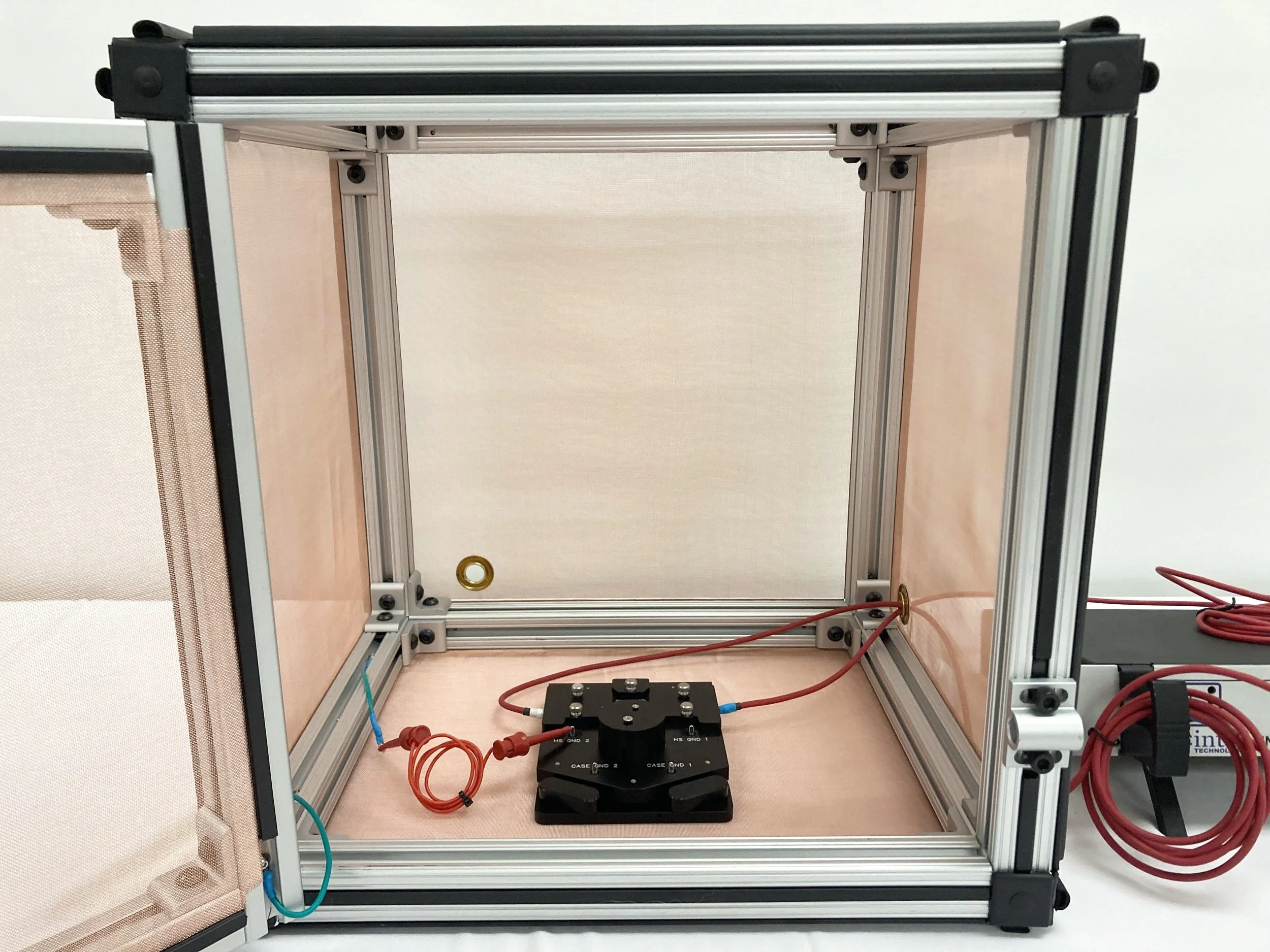

Electrophysiology experimental setup with Faraday cage for low noise recording and stimulation experiments
Data Analysis Software
NeuroExplorer Software Package for data analysis
Analyze continuously recorded signals as well as sequences of timestamps (spike trains, behavioral events) and short signal fragments (spike waveforms)
More than 40 analysis types to explore data
Calculate statistical properties (e.g., confidence limits for histogram and spectra; histogram peak locations and z-scores)
Output files from Electrophysiology Module can be directly imported in NeuroExplorer without file conversion
product number (PN): 11-91000 (Software), 11-91000 (Neural Explorer)
Example screenshot of the Neuroexplorer program to analyze recorded signals
